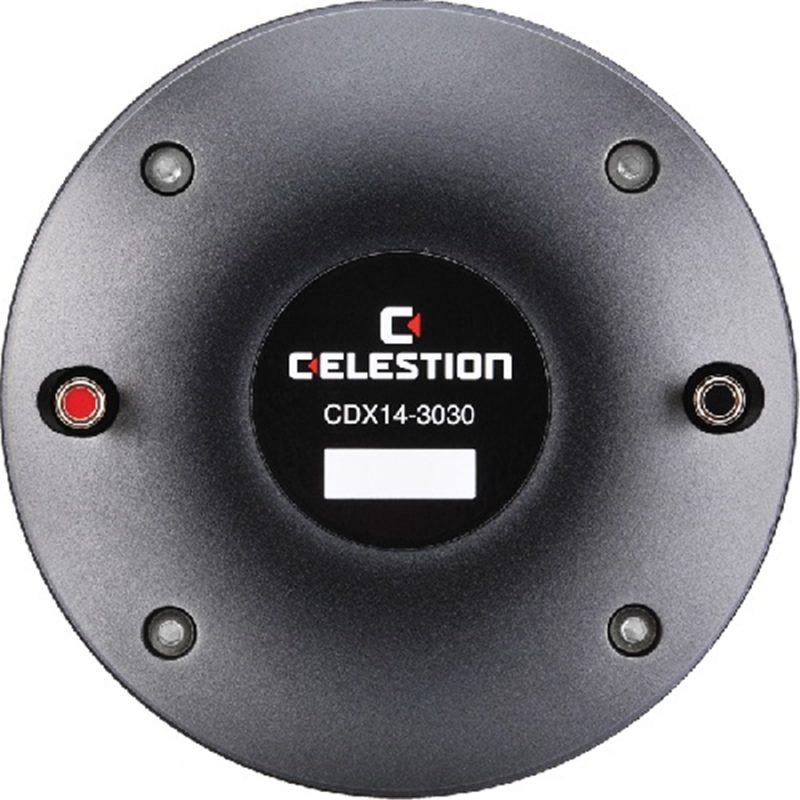

Celestion CDX14-3030 75W 8ohm HF Ferrite

Descrizione

Celestion – CDX14-3030 75W 8ohm – HF Compression Driver – Ferrite

Driver a compressione con magnete in ferrite, uscita da 1.4″, potenza 75Watt, impedenza 8ohm,

diaframma in titanio, fissaggio con viti (bolt).

Caratteristiche

– 1.4″ exit, ferrite magnet, 3″ voice coil compression driver provides 75Wrms (AES standard) power handling and 106.5dB sensitivity

– Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance

– One piece titanium diaphragm and surround

– Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design

Specifiche Generali

Power rating(1): 75Wrms

Continuous power rating(2): 150W

Nominal impedance: 8ohm

Frequency range: 500-18,000Hz

Sensitivity(3): 106.5dB

Recommended min. crossover (12dB/oct): 1000Hz

Voice coil diameter: 75mm/3in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Ferrite

Diaphragm material: Titanium

Surround material: Titanium

Informazioni di Montaggio

Width: 180mm/7in

Depth: 68mm/2.7in

Weight: 4.88kg/10.7lb

Fitting: Flange (4 x M6 holes on a 102mm/4in PCD)

Throat exit: 35.6mm/1.4in

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
