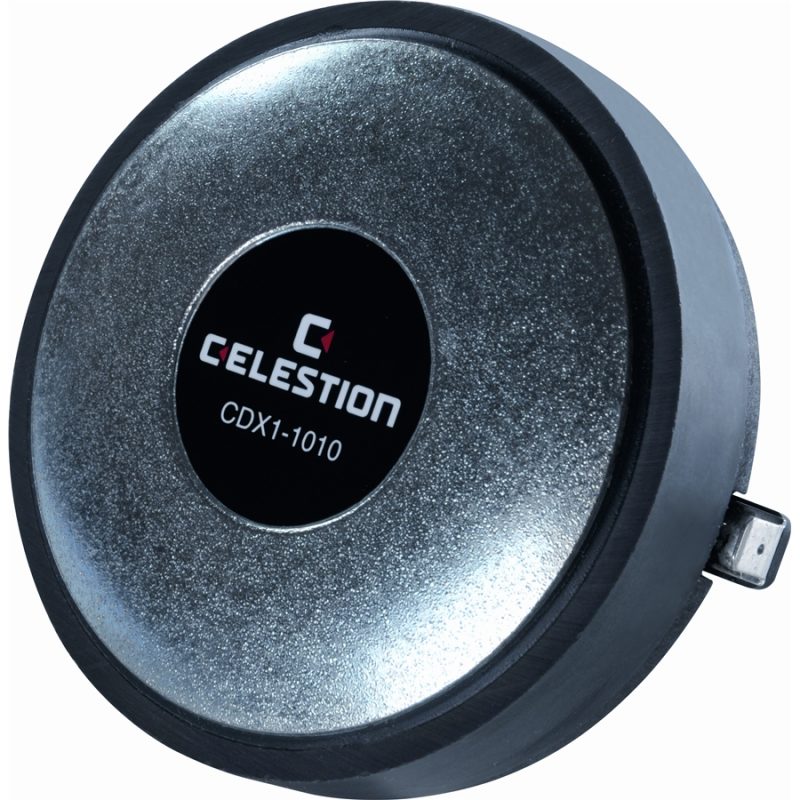

Celestion CDX1-1010 15W 8ohm HF Ferrite

Descrizione

Celestion – CDX1-1010 15W 8ohm – HF Compression Driver – Ferrite

Driver a compressione con magnete in ferrite, uscita da 1″, potenza 15W, impedenza 8ohm,

diaframma in PETP (polietilene tereftalato), fissaggio ad avvitare (screw).

Caratteristiche

– Very lightweight, low-profile ferrite magnet compression driver

– 15Wrms (AES standard) power handling and 107dB sensitivity, 1500-20,000Hz frequency range

– Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design

– Ideal for entry-level two-way and three-way sound reinforcement cabinets

– CDX1-1020 variant supplied with partial phase plug assembly (for applications where outer phase plug and horn form single moulding as part of front baffle)

Specifiche Generali

Power rating(1): 15Wrms

Continuous power rating(2): 30W

Nominal impedance: 8ohm

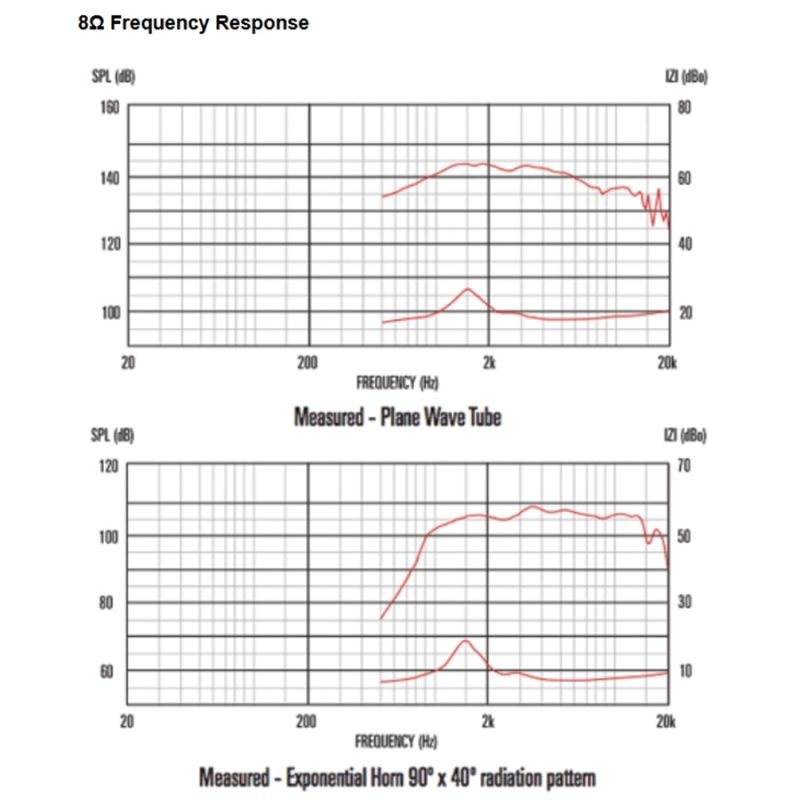

Frequency range: 1500-20,000Hz

Sensitivity(3): 107dB

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 25mm/1.0in

Voice coil material: Copper clad aluminium

Magnet type: Ferrite

Diaphragm material: PETP film

Surround material: PETP film

Informazioni di Montaggio

Width: 90mm/3.54in

Depth: 52.8mm/2.08in

Weight: 0.83kg/1.8lb

Fitting: Screw (35mm/1.38in diameter)

Throat exit: 25mm/1.0in

Trombe Compatibili

H1SC-9040, H1SC-7050

Note

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
